Standard Material:
-
PVC 0.8mm door blade in grey or blue
​
-
201 Stainless steel metal work
Optional Upgrades:
-
Various PVC 0.8mm door blade colours
​
-
304 stainless steel metal work
​
-
Loop & motion detectors
​
-
Pull cords & push buttons
​
-
Full width vision section
​
-
Crate for shipping
Dimensions:
​
-
Up to 12' 6" high
-
Up to 11' 6" wide
Standard Features:
-
Inverter driven direct drive operator
​
-
Special self-repairing door blade
​
-
Opening speed 0.5 to 1.5 meters/second
​
-
Closing speed 0.5 to 1.0 meters/second
​
-
Photo eye and reversing edge for safety
-
Standard absolute encoder
-
Inverter drive with soft start/stop and fully adjustable open/close speeds up to 48 inches per second
​
-
NEMA 4-12 Control panel with 220v
​​
-
Simple diagnostic troubleshooting​​
​
-
Low maintenance

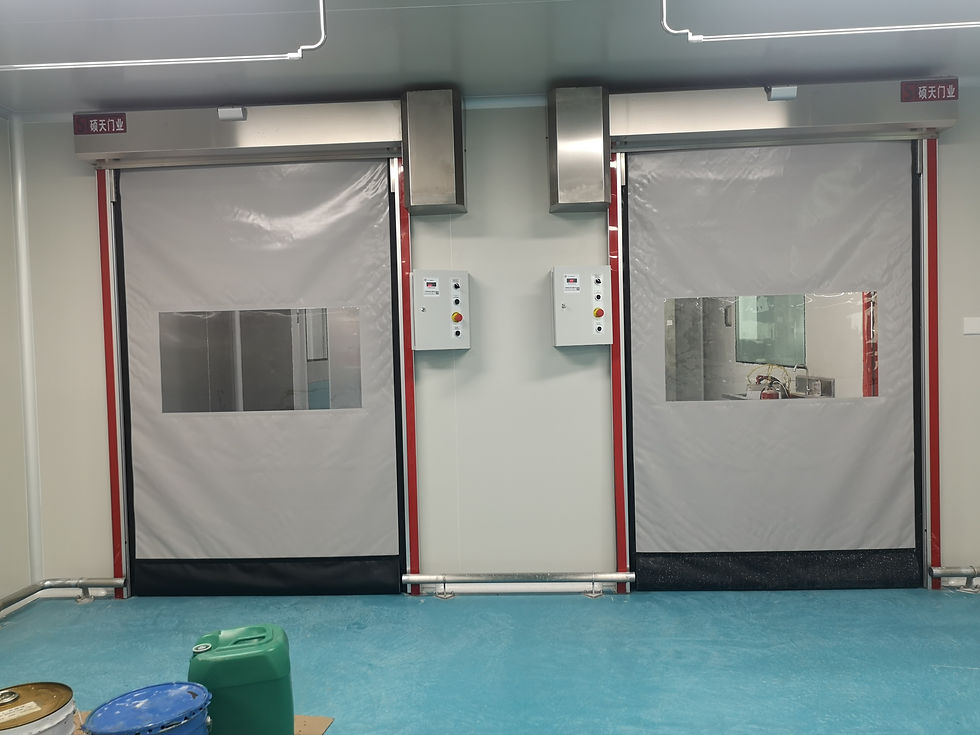

Double 110-Z models in the colour grey with vision panels
the 110-Z model in the colour blue with a vision panel

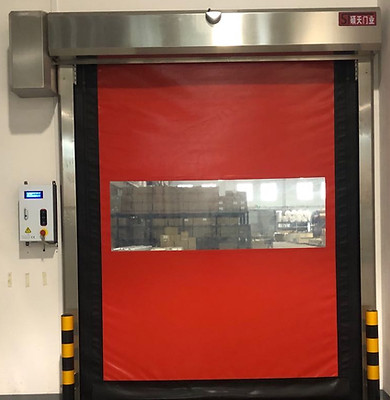

The 110-Z model In the colour red with a Vision panel
Double 110-Z models in the colour grey with vision panels
